1. Introduction
This manual guides you to setup Rocrail to work with RemoteSign.The setup is for two displays but can be adapted for more or fewer displays.
2. Requirements
- Rocrail software: www.rocrail.net
- RemoteSign Sequencer software
- Any two RemoteSign screens such as
- RemoteSign Windows
or - RemoteSign ESP
- (These can be ordered from https://remotesign.square.site/ or assembled yourself using:
- Arduino ESP-modules (2x): ESP8266 NodeMCU or WEMOS D1 mini processor
- OLED display (2x): 128x32 OLD 0.91” display
- Case for display: 3D design ZZA | Tinkercad
3. Hardware installation
Install the RemoteSign ESP and displays according to the instructions at https://remotesign.mixmox.com/p/esp8266-sample-sketch.html4. Setup RemoteSign Sequencer
Install RemoteSign if you haven’t already done so. (In this manual we assume the folder C:\RemoteSign.)
Go to c:\RemoteSign\scripts and make the following files with e.g. Notepad :
Filename: Spoor1.bat
Content: C:\RemoteSign\RSRelay.exe Spoor_1
Filename: Spoor2.bat
Content: C:\RemoteSign\RSRelay.exe Spoor_2
These .bat files will be used for the Actions in Rocrail.
Start the first RemoteSign display.

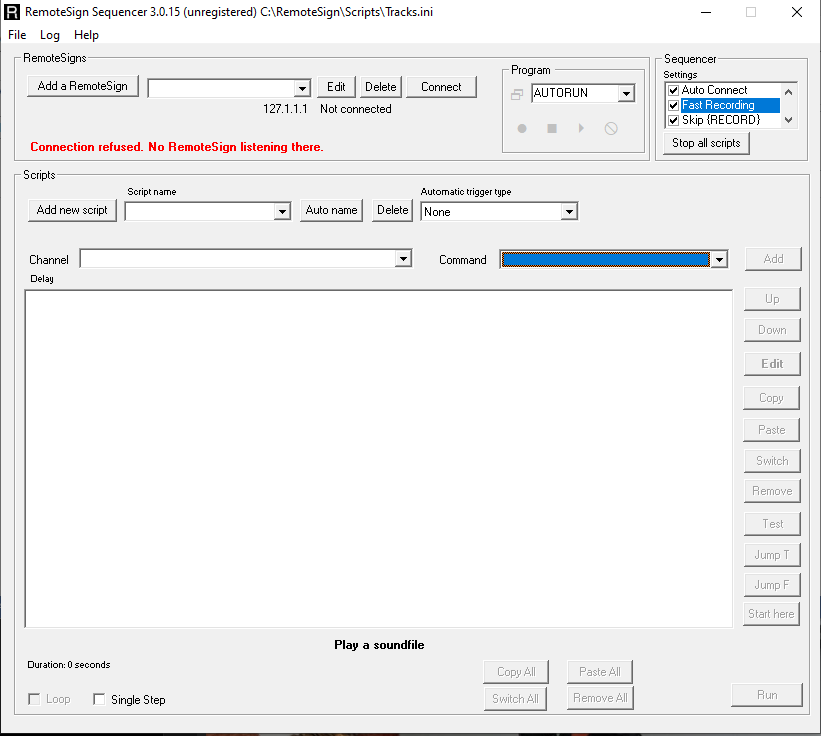

Start RemoteSign Sequencer.
Create a new script.
Click on File
Click on New
Define the filename for the script (here Tracks.ini)
Click on OK
Add all other RemoteSign displays.

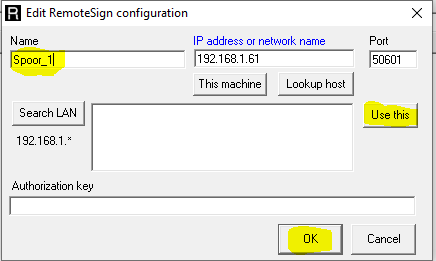

Click on Add RemoteSign
Click on Search LAN
The IP address of the first RemoteSign is visible, click on Use this and change the Name-field.
Click on OK
Click on File
Click on Save
Add the second RemoteSign the same way.

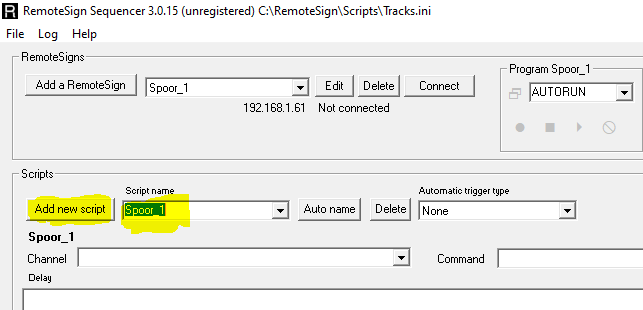

Click on Add new script and insert the script name (here Spoor_1).
Now we make the actual script.

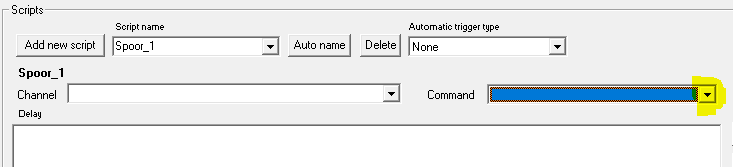

Click on the Command combobox

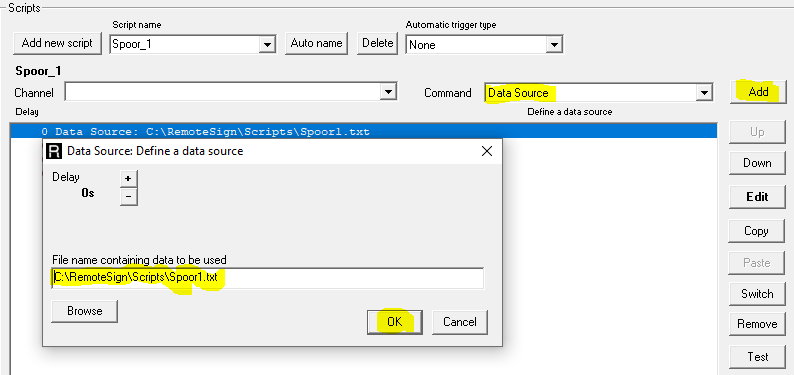

Select "Data Source"
Click on Add
Insert the following info: C:\Remotesign\Scripts\Spoor1.txt
Click on OK
Insert the following lines by repeating the previous steps.
Click on Command and select {ROW}
Insert the following text: \<Row1|15> \T+01
This defines the data from the text file on the first display row with a clock on the right side.

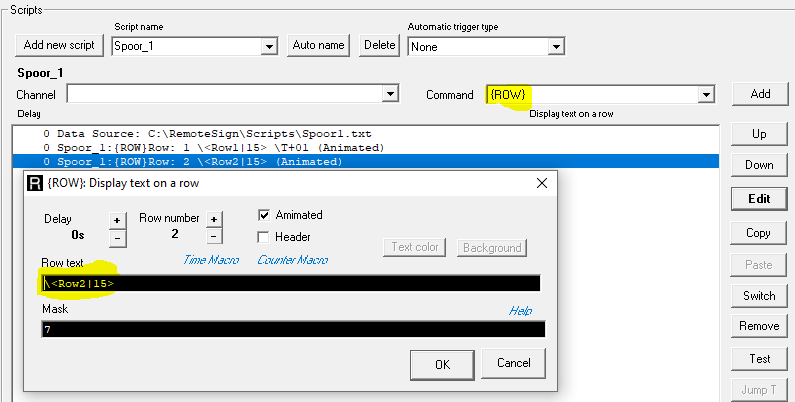

Add another row.
Click on Command and select {ROW}
Add the following text: \<Row2|15> and Click on OK
Additional you can play a sound file every time the display changes (optional).

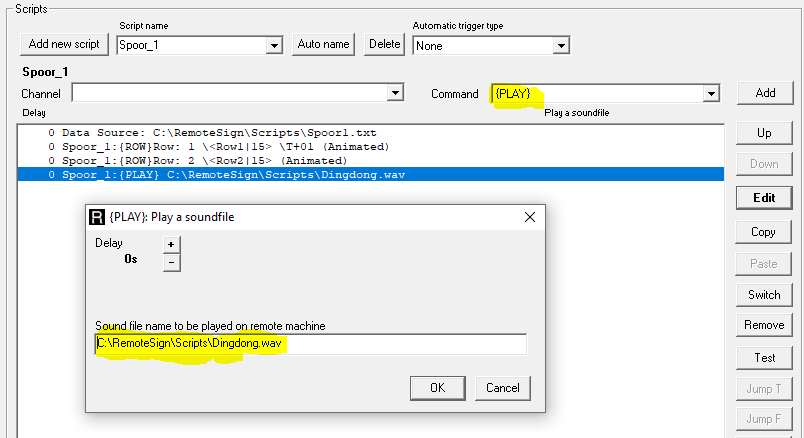

Click on Command and select {PLAY}
Insert the following text: C:\RemoteSign\Scripts\Dingdong.wav
The file dingdong.wav must exist. Any other sound file is also possible.
Click on Switch All and you should see the following screen.

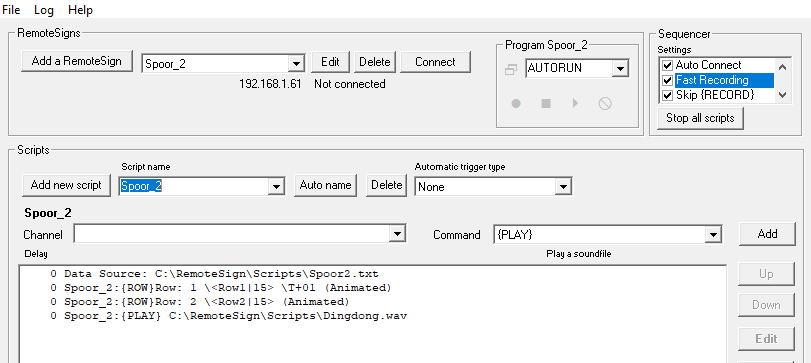

Select Spoor_2 and make the second script Spoor_2 the same manner.
Click from time to time on File and then on Save
5. Setting up the RemoteSign Sequencer
RemoteSign Sequencer is the main engine for the displays.
To start the above mentioned scripts you have to use RSRelay.exe.
Go to C:\Remotesign and make two files with Notepad:
Filename: TXT_Spoor1.bat
Data:
copy "%*" > Spoor1.txt
C:\RemoteSign\RSRelay.exe Spoor_1
Filename: TXT_Spoor2.bat
Data:
copy "%*" > Spoor2.txt
C:\RemoteSign\RSRelay.exe Spoor_2
6. Setup Rocrail
Install Rocrail if you haven’t done yet.
Start Rocrail and make two text-labels (for each station-track).
Click on Tables
Select Text
Make 2 text fields.
Now you have to make an Action.
Click on Tables
Select Actions

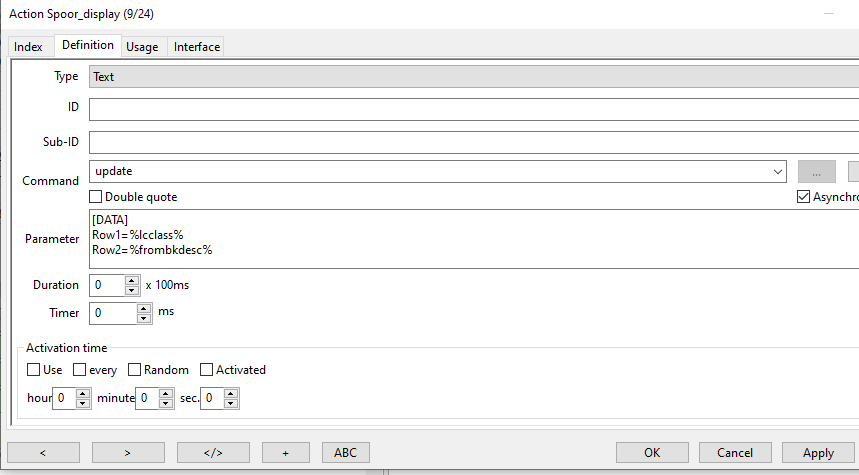

Make the action Spoor_Display with the following data:
Make the actions to update the displays.
Click on Tables
Select Actions
Make 2 actions with the following data:

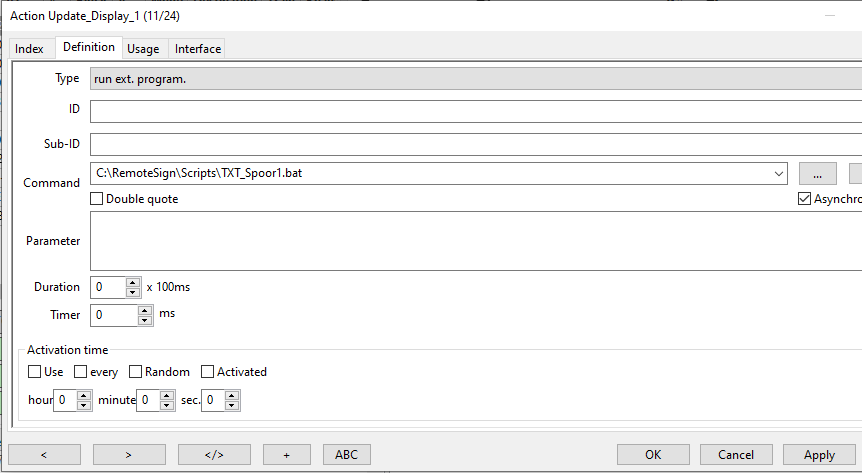

Name action: Update_Display_1

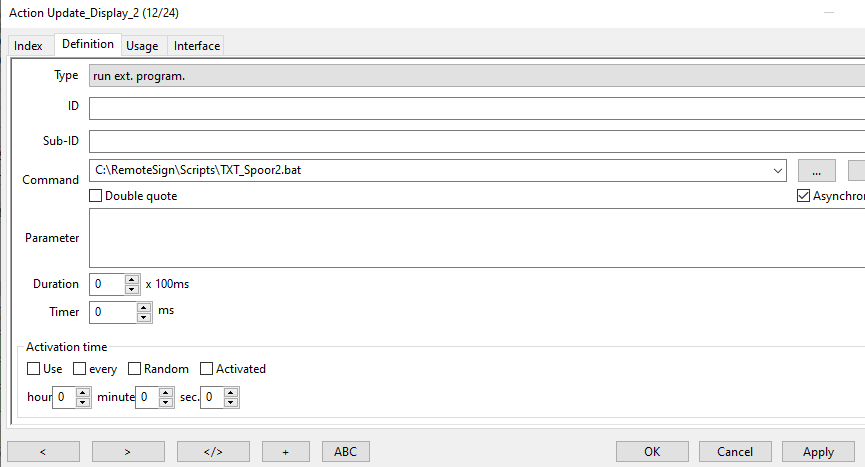

And an action Update_Display_2
6. Testing
Start RemoteSign Sequencer(It should open the Tracks.ini, otherwise open that file:
Click on FileSelect OpenSelect Tracks.ini)
Minimise RemoteSign Sequencer
Start a loc in Rocrail.
The data in the two textfields will change as the loc starts the actions.
Instead of the action you can also define a Schedule and connect the actions to that schedule.
Then you have to define the parameters of the Schedule in the text fields.
Start a loc in Rocrail.
The data in the two textfields will change as the loc starts the actions.
Instead of the action you can also define a Schedule and connect the actions to that schedule.
Then you have to define the parameters of the Schedule in the text fields.
